Key Highlights
- Edge Computing
- High Performance
- High Accuracy
- Dark Environment
- Energy Saving
- Solution Ready
- Easy to Install
- Easy Integration
- SDK Available
Technical Specification
| Operating Range | 0.15m to 4m, auto switch mode |
|---|---|
| Frame Rate | 30fps, 60fps (3D frames) |
| Resolution | 80 x 60 px, up to 160 x 120 px |
| FoV (H x V x D) | 70.6° x 54.6° x 84.4° |
| Depth Accuracy | ≤ 2% of distance |
| Emitter Type | VCSEL, 850nm wavelength |
| 3D Image Processor | ARM® Cortex®-M7 core |
| I/O Port | RJ45 (10/100Mbps), USB2.0 (UVC, HID CDC, HID sensors) |
| I/O Interface | Ethernet, USB2.0 |
| Power Consumption | 5W max. |
| Power Supply | 5V/2A DC adapter; 5V/2A USB power |
| Dimension | 96.2mm x 37mm x 20mm |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -30℃ ~ 85℃ |

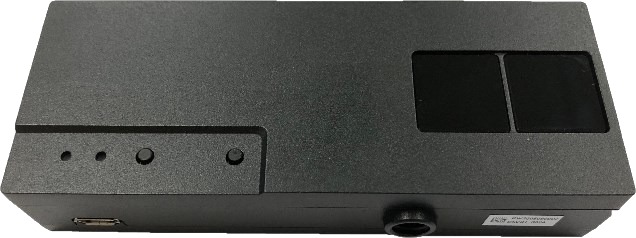

Interested in 5VTTF01E?
Contact our team for datasheets, pricing, and integration support.
